Display for Orange Pi Zero

After figuring out the GPIO pin names of the Orange Pi Zero expansion port it is relatively easy to configure any TFT display as a FBTFT device attached over the SPI bus, as long as you know the name of the chip used to drive the LCD screen. Here is a list of all the chips supported by the Linux kernel out of the box.

The display I have is very similar to this 3.2″ Waveshare touch-screen display that uses the ILI9340 LCD driver (PDF) chip. It was only a matter of specifying the two GPIO pins used for DC (Data or Command) and RST (Reset) in addition to the SPI port.

  • H2+ port PA00 maps to GPIO 0, connected to RST
  • H2+ port PA03 maps to GPIO 3, connected to DC
  • H2+ SPI bus 1 is connected to the display module SPI pins.

The following command can be used to load the FBTFT device with the required configuration:

$ sudo modprobe fbtft_device custom name=fb_ili9340 gpios=dc:3,reset:0 speed=16000000 busnum=1 rotate=90

And then map the console output to the newly created framebuffer device:

$ con2fbmap 1 8

where 8 stands for /dev/fb8.

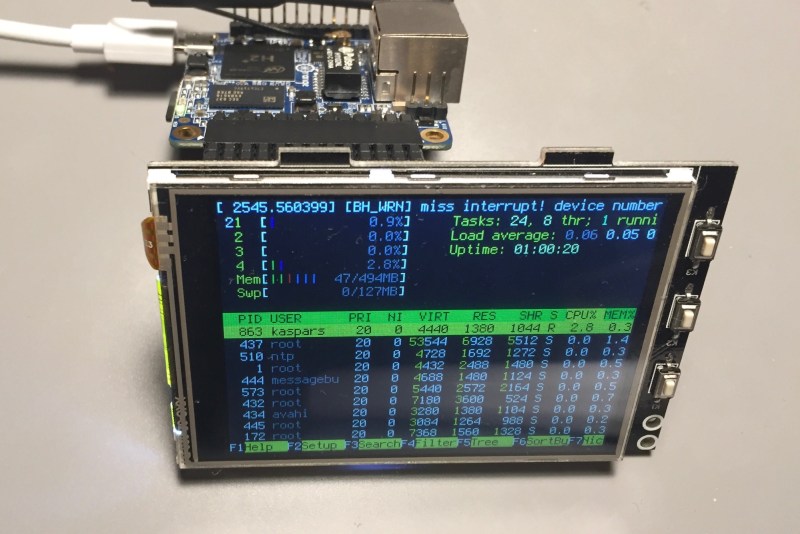

Here is the display running htop:

3.2″ TFT LCD Display for Orange Pi Zero Over SPI

Permanent Setup

Create a new file /etc/modules-load.d/fbtft.conf with the following content:


Create another file /etc/modprobe.d/fbtft.conf with the configuration for the fbtft_device device:

options fbtft_device custom name=fb_ili9340 gpios=dc:3,reset:0 speed=16000000 busnum=1 rotate=90

Finally, edit /boot/armbianEnv.txt to map the console output to the framebuffer device during the boot, by appending the following:
