WireGuard on MikroTik RouterOS

WireGuard can be used for a lot of things:

  • Managing router configuration remotely behind NATed networks such as mobile connections.
  • Connecting to your home network while on the road for home automation and safe internet access.
  • Connecting several networks over the public internet.

This post focuses on enabling remote access to Mikrotik routers and the attached networks. All other setups are outside the scope of this document and can be designed by following this awesome WireGuard documentation.

Mikrotik added official support for WireGuard in version 7 of RouterOS.

Peers, Servers and Clients

With WireGuard everything is a “peer” which often causes confusion about how to configure each device on the network.

In practice, most consumer devices today are on some kind of private ISP network and can’t be addressed from the public internet which is good for security reasons. Only when your device initiates a connection to a remote service such as google.com (a TCP connection), do all of the routers on the way establish a connection path back to your device. This is called Network address translation or NAT.

That is why most WireGuard networks require at least one “peer” with a real public IP address that is accessible on the public internet to serve as a gateway. Accessing peers behind NATed connections such as mobile phones and most home internet connections isn’t possible without connecting through a peer on the public internet unless you want to attempt some kind of UDP hole punching.

This article assumes the following network elements:

  • One WireGuard peer on the public network serving as a gateway for the rest of the peers.
  • One MikroTik router configured as a WireGuard peer.

WireGuard Gateway or Server Peer

This can be any computer with a public IP address running Wireguard. There are many guides for how to build one on DigitalOcean, Linode, AWS or any other cloud hosting provider. Alternatively, use one of the commercial offering but keep in mind that anyone with access to the private keys of your peers can access your WireGuard network.

For our example we’ll use the following server configuration:

  • Public IP 123.123.123.1
  • WireGuard ListenPort set to 51820
  • WireGuard Address range set to 10.100.100.1/24
  • WireGuard public key YrXqKGpYLVx829MCcVcb78QFDWIeeWfOyFHmdmZAlF0=

Assuming that the server is up and running, let’s configure the WireGuard peer on RouterOS.

MikroTik as a WireGuard Peer

Under the “WireGuard” menu we first create a new WireGuard network interface that defines this MikroTik peer to the rest of the network:

Create New WireGuard Interface

List of WireGuard interfaces in RouterOS
List of WireGuard interfaces in RouterOS.
Mikrotik add new WireGuard interface
Add new WireGuard interface. The private and public keys are generated automatically.

After clicking “OK” or “Apply” it generates the private and public keys that are required for adding this peer to the network. Note down the public key eLgevqdmOawh1t7srQ+Zs3K5l9o2cf33H/S1UwXeX04= as it is needed later for adding the router to the gateway server.

Define Gateway Peer Connection

Under the “Peers” tab add the details for the connection to the gateway server:

Add WireGuard peers to RouterOS
Add WireGuard peers to RouterOS.
Add the WireGuard server peer to RouterOS
Add the WireGuard gateway peer connection to RouterOS.

Public Key, Endpoint and Endpoint Port are all values of our gateway server described above. The only unique value is the “Allowed Address” which we assign to 10.100.100.2/32.

Optionally configure the “Persistent Keepalive” to ensure it keeps the connection information updated with the gateway when the ISP assigned IP changes.

Add MikroTik Peer to the Gateway Configuration

We need to make the Gateway server aware of the newly created peer, so we update its configuration to include the new peer:

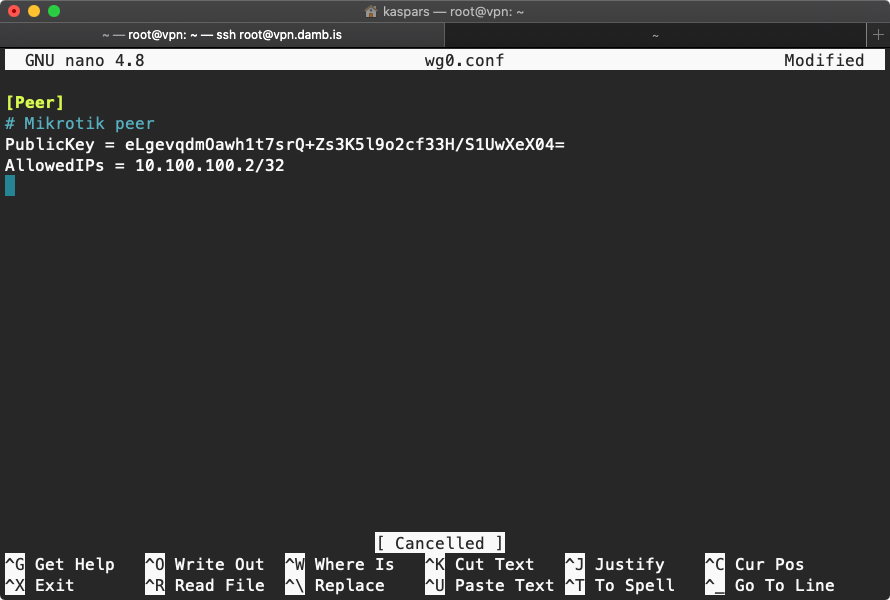

WireGuard server configuration for MikroTik peer
WireGuard gateway server configuration for our MikroTik peer.

After restarting the WireGuard interface on the gateway server, the MikroTik traffic monitor for the WireGuard interface should start showing keep-alive and handshake data flowing:

WireGuard network interface traffic reported in RouterOS
WireGuard network interface traffic reported in RouterOS.

At this point the MikroTik router should be able to ping the WireGuard network:

WireGuard ping in RouterOS
RouterOS pinging the WireGuard gateway peer.

However, nothing has been configured about how the newly created interface can be reached from the outside or inside the MikroTik network.

To make the WireGuard network accessible from the local 192.168.88.0/24 network, we must first define its address range and routing information.

Define WireGuard Peer IP and Routes

To make the router aware of its new IP address on the WireGuard network, go to “IP > Addresses” and add the address 10.100.100.2/24:

Add WireGuard address route in RouterOS.
Add WireGuard address range to RouterOS.
WireGuard IP address route in RouterOS
Add WireGuard IP address 10.100.100.2/24 to RouterOS.

Under “Interface” select the newly created WireGuard interface.

Notice how this automatically provisioned a new network route for 10.100.100.0/24 under “IP > Routes”:

WireGuard route in RouterOS
WireGuard route in RouterOS.

Define WireGuard Network Firewall Rules

Finally, you need to add the firewall rules to match your desired configuration and access restrictions. See the RouterOS documentation page for a few examples.
